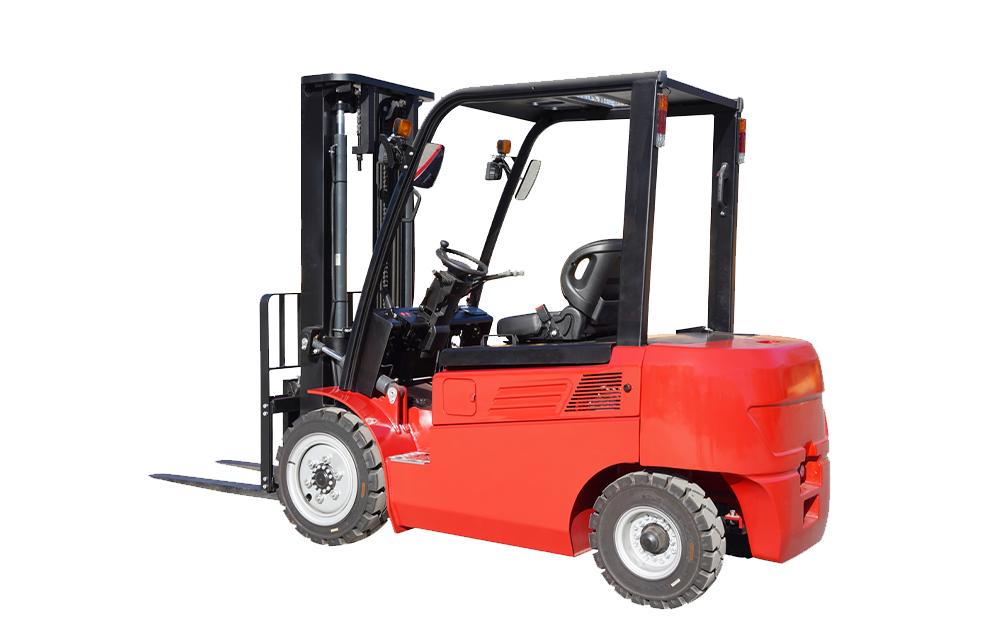

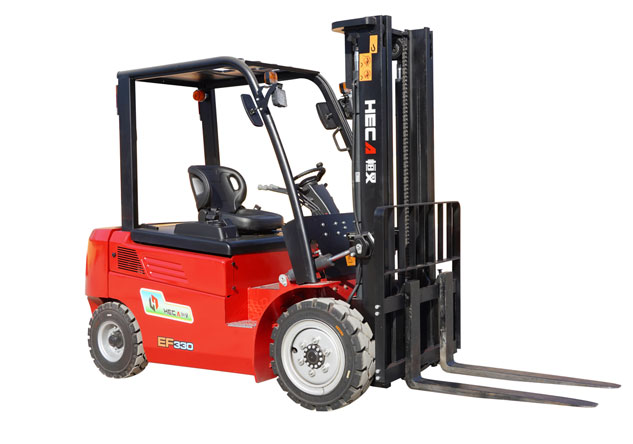

M Series 2.5-4T Electric Forklift

Our Rank 1 Best Selling Electric Forklift

► Back Pipe Type Mast, 170% View Compared with Regular Mast
► Cast one-piece drive axle has strong trafficability and high strength
► SKD & CKD Service Available
► Finger-tip Function for Option

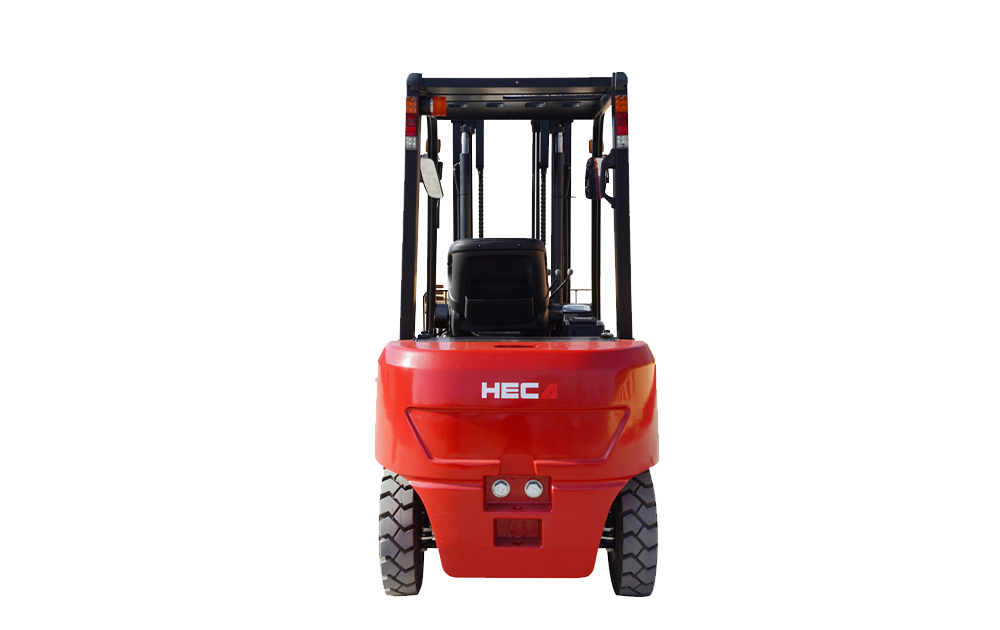

► Rear Horn, Reverse Alarm Light and Toyota-Style Seat as Standard Configuration
► Continuous Spare Parts Service
► Free Customized Color and Logo Service
► Mobile Phone Charging Port as Standard Configuration

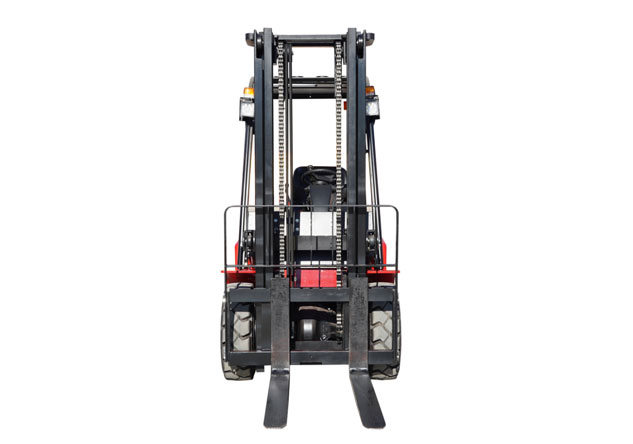

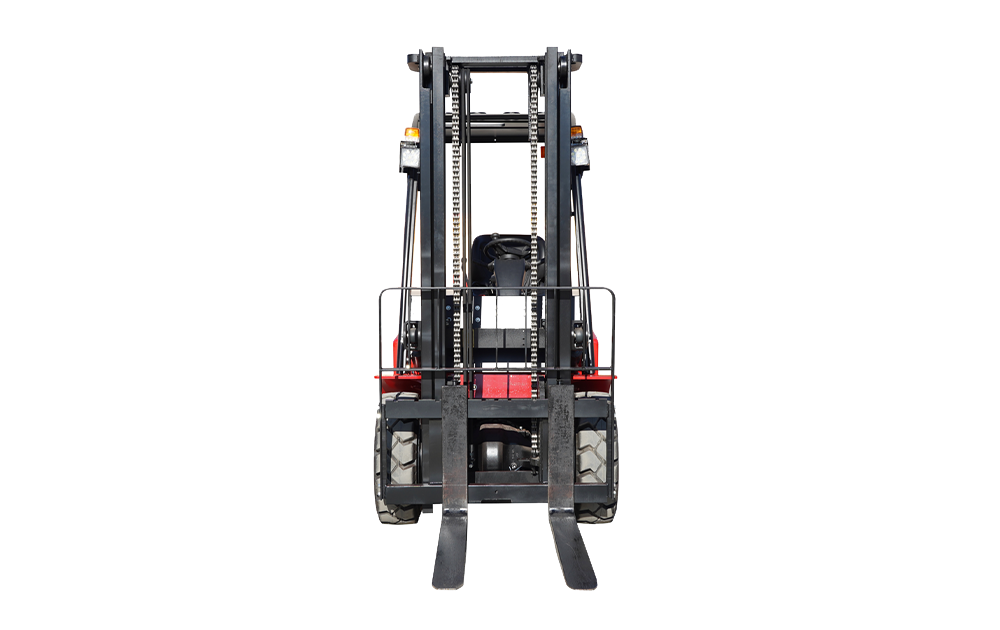

Back Pipe Type Mast: The regular mast is upgraded to a back pipe type mast, and the driver's field of vision becomes 170% of the original, which is safer.

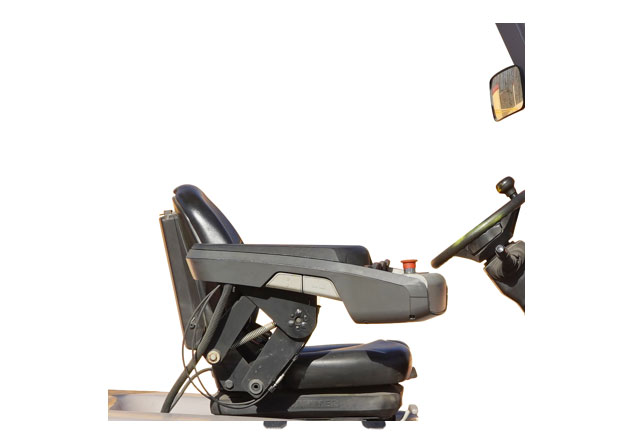

Finger-tip Operating System (Optional): The Grammer fingertip operating system is optional, and the seat integrates functions such as adjusting the mast, lights, and driving speed.

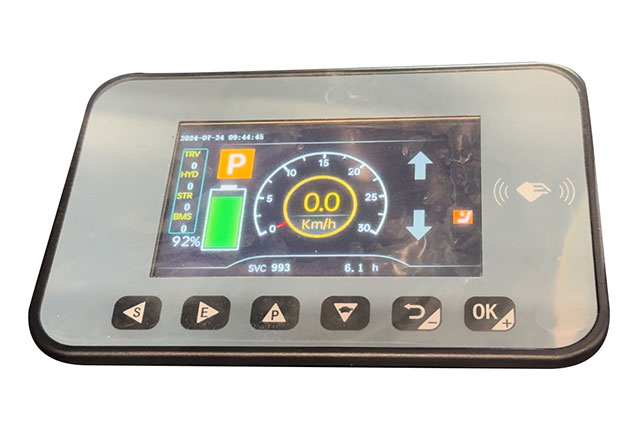

High Performance Instrument Panel: Same supplier as top brands in the world, helping you better acquire the work condition of the forklift.

High-power Drive Motor: High-power 16.6KW (can be upgraded to be 29KW) drive motor (other manufacturers' drive motors are generally 10KW), our motor power is 166% of other manufacturers, which helps ensure higher operating efficiency, stronger power, and stronger climbing ability.

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

ENQUIRE ONLINE

Specifications

Model
FB25FB30FB35FB40
Power Source
Electric Electric Electric Electric
Capacity kg2500300035004000
Load Centermm500500500500
Lifting Height mm3000300030003000
Travel Speed (load/no load)km/h15/1815/1815/1815/18
Lifting Speed  (load/no load)mm/s330/430330/430330/430330/430
Max Gradeability%15151515
Mast Height, Lowered mm2230223022302230
Overall Lengthmm2730273027302730
Overall Widthmm1260126012601260
Wheel Base mm1750175017501750
Dimensions of Front Wheels
28*9-1528*9-1528*9-1528*9-15
Dimensions of Rear Wheels
6.50-106.50-106.50-106.50-10
Self Weight kg3900400043904690
Battery Voltage (Lithium Battery)V76.8/153.676.8/153.676.8/153.676.8/153.6
Battery PowerAH280~450280~450280~450280~450
Drive Motorkw16.6/2916.6/2916.6/2916.6/29
Lift Motorkw21/2221/2221/2221/22


Besides M Series 2.5-4T Electric Forklift, are you interested in other capacities? Or perhaps a diesel forklift is the ideal product for you? Talk to our team now for a suitable plan.
