4.5-10T Diesel Forklift

Position:Home > Products > Diesel Forklift >

4.5-10T Diesel Forklift

Diesel forklifts are one of the toughest workhorses in the materials handling world, being suited to a wide range of unit loads and designed to withstand the rigors of outdoor work. Powered by a fuel that is both easy to get hold of and straightforward to use, diesel forklifts perform extremely well in harsh environments, including those that are wet or dirty.
Let’s say goodbye to the tough warehouse work and Enjoy Easy Lifting together!
► EPA Engine for Option
► EURO 5 Engine for Option
► SKD & CKD Service Available
► Reverse Alarm Light as Standard Configuration
► Toyota-Style Seat as Standard Configuration
► Continuous Spare Parts Service
► Free Customized Color and Logo Service
► Customized Forklift Design Service, like OPS system, finger-tip function or weighing scales…

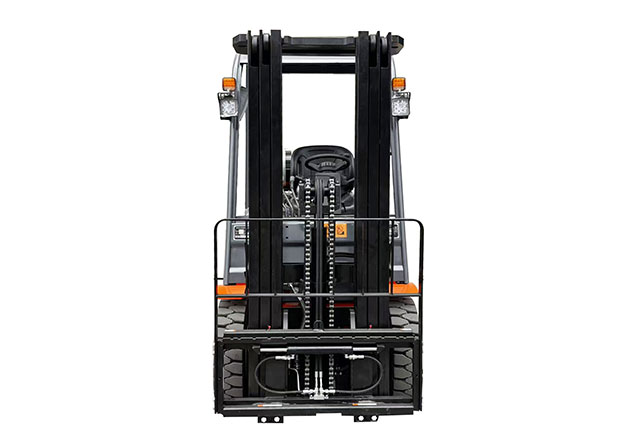

: Back Pipe Type Mast: The regular mast is upgraded to a back pipe type mast, and the driver's field of vision becomes 170% of the original, which is safer.

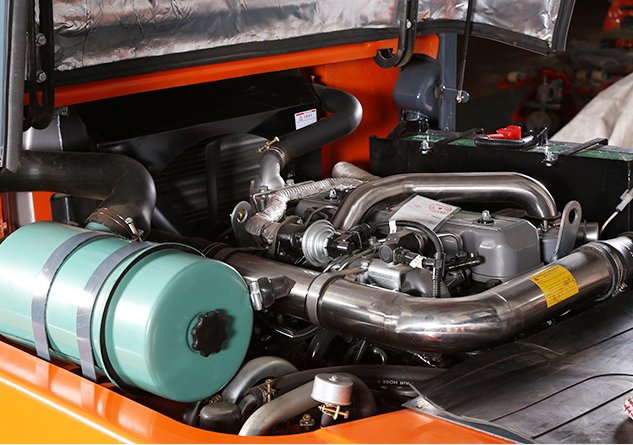

: Powerful Engines: helps guarantee excellent driving dynamics with low emissions,EPA & EURO 5 engines for option, meeting the highest emission regulations in the world.

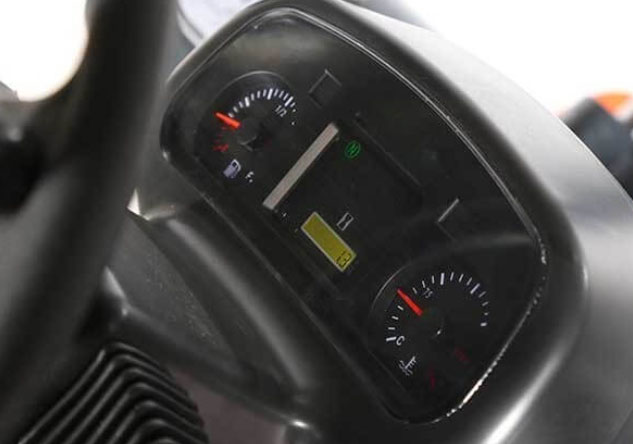

: High Quality Instrument Panel: Multi-functional Instrument Panel, equipped with fault diagnosis, oil display, and other functions, helping you better acquire the work condition of the forklift.

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

ENQUIRE ONLINE

Specifications

Model		FD45	FD50	FD60	FD70	FD80	FD100
Power Source		Diesel	Diesel	Diesel	Diesel	Diesel	Diesel
Capacity	kg	4500	5000	6000	7000	8000	10000
Load Center	mm	500	500	600	600	600	600
Lifting Height	mm	3000	3000	3000	3000	3000	3000
Travel Speed (load/no load)	km/h	22/24	22/24	26/28	26/28	25/27	25/27
Lifting Speed (load/no load)	mm/s	400/420	460/480	500/530	500/530	450/480	340/360
Maximum Lifting Height of Fork	mm	4220	4200	4400	4400	4400	4400
Height When Mast is Lowered	mm	2370	2270	2450	2450	2870	2870
Overall Length with fork	mm	4120	4209	4730	4780	5050	5497
Overall Length without fork	mm	3050	3139	3560	3600	3830	4277
Overall Width	mm	1400	1480	1970	1970	2100	2245
Front Tyre Size		300-15	300-15	8.25-15NHS	8.25-15NHS	8.25-20NHS	9.00-20NHS
Rear Tyre Size		7.00-12	7.00-12	8.25-15NHS	8.25-15NHS	8.25-20NHS	9.00-20NHS
Wheelbase		1900	2000	2250	2250	2500	2800
Self Weight	kg	5860	7100	8900	9600	10800	12410
Battery Voltage/Capacity	V/AH	12/80	2*12/80	2*12/80	2*12/80	2*12/80	2*12/80

Besides 4.5-10T Diesel Forklift, are you interested in other capacities? Or perhaps an electric forklift is the ideal product for you? Talk to our team now for a suitable plan.
