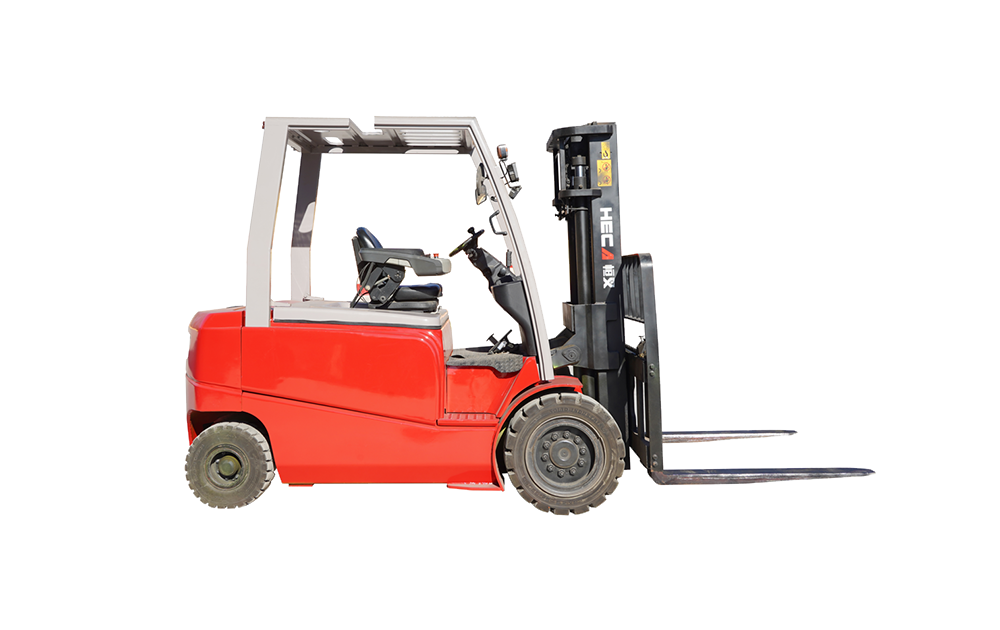

E Series 1.6-5T Electric Forklift

A high-quality electric forklift is an essential component for your intralogistics solution.
Thanks to their innovative AC motors, our electric forklifts combine impressive performance with minimal energy consumption.
Let’s say goodbye to the tough warehouse work and Enjoy Easy Lifting together!
► Back Pipe Type Mast, 170% View Compared with Regular Mast
► Cast one-piece drive axle has strong trafficability and high strength
► SKD & CKD Service Available
► Finger-tip Function for Option
► Rear Horn, Reverse Alarm Light and Toyota-Style Seat as Standard Configuration
► Continuous Spare Parts Service
► Free Customized Color and Logo Service
► Mobile Phone Charging Port as Standard Configuration

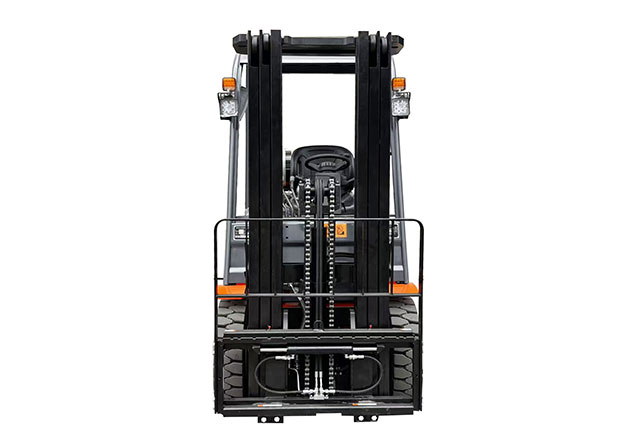

: Back Pipe Type Mast: The regular mast is upgraded to a back pipe type mast, and the driver's field of vision becomes 170% of the original, which is safer.

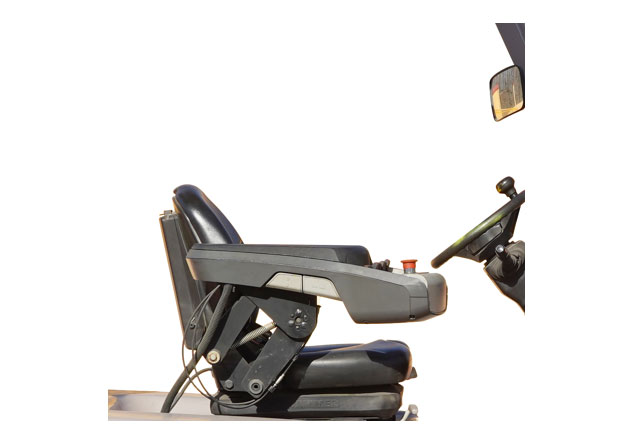

: Finger-tip Operating System (Optional): The Grammer fingertip operating system is optional, and the seat integrates functions such as adjusting the mast, lights, and driving speed.

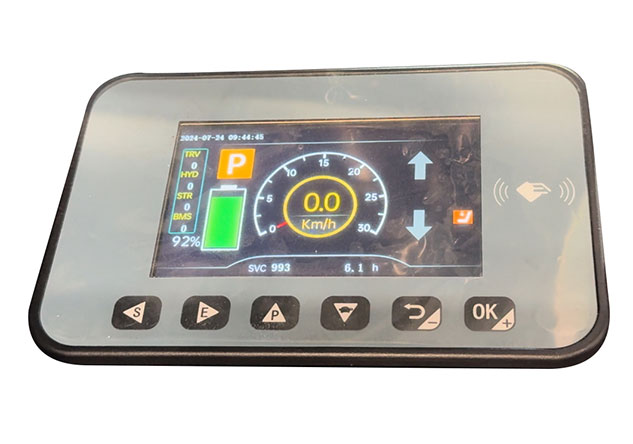

: High Performance Instrument Panel: Same supplier as top brands in the world, helping you better acquire the work condition of the forklift.

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

ENQUIRE ONLINE

Specifications

Model		FB16	FB20	FB30	FB35	FB50
Power Source		Electric	Electric	Electric	Electric	Electric
Capacity	kg	1600	2000	3000	3500	5000
Load Center	mm	500	500	500	500	500
Lifting Height	mm	3000	3000	3000	3000	3000
Travel Speed (load/no load)	km/h	17.5/18	17.5/18	17.5/19	17.5/19	15/16
Lifting Speed (load/no load)	mm/s	500/600	380/550	450/550	450/550	310/340
Max Gradeability	%	25	20	20	20	20
Mast Height, Lowered	mm	2010	2040	2120	2120	2305
Overall Length	mm	2090	2080	2595	2595	2975
Overall Width	mm	1080	1140	1274	1274	1496
Wheel Base	mm	1500	1500	1800	1800	2000
Dimensions of Front Wheels		18*7-8	200/50-10	23*9-10	23*9-10	28*12.5-15
Dimensions of Rear Wheels		16*6-8	16*6-8	18*7-8	18*7-8	21*8-9
Self Weight	kg	3250	3600	5150	5350	8300
Battery Voltage (Lithium Battery for option)	V	76.8/153.6	76.8/153.6	76.8/153.6	76.8/153.6	76.8/153.6
Battery Power	AH	280~600	280~720	400~720	400~720	400~830
Drive Motor	kw	4.8*2	4.8*2	7.5*2	7.5*2	12*2
Lift Motor	kw	11	11	23.5	23.5	25.5

Besides E Series 1.6-5T Electric Forklift, are you interested in other capacities? Or perhaps a diesel forklift is the ideal product for you? Talk to our team now for a suitable plan.
